Hyalodiscus scoticus in DIC/brightfield

[Rene]

Got some samples in from a UK harbour this year (Hull) last year which got some of those typical Podosira/Hyalodiscus species. So I decided to spend some time preparing it in different orientations. The valve diameter of this marine diatom is 42um.

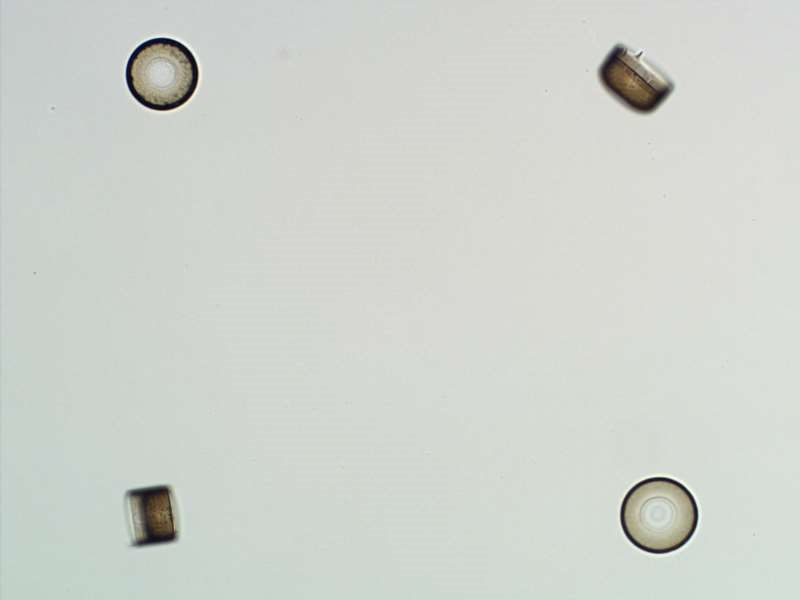

So valve upwards, sideways, girdle and valve downwards:


On my inverted with 20x/0.7 splanapo

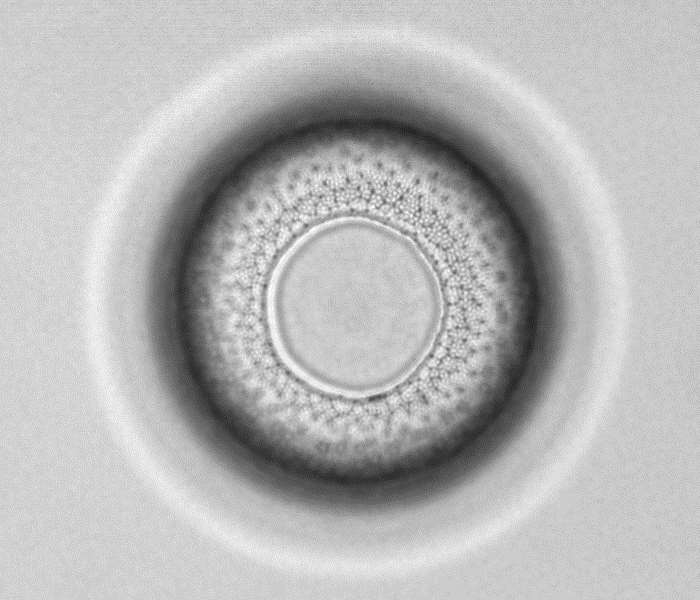

topview:

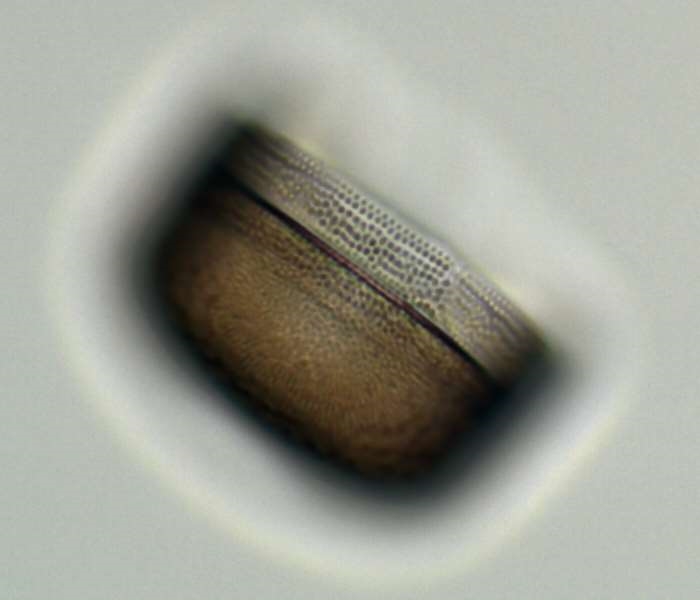

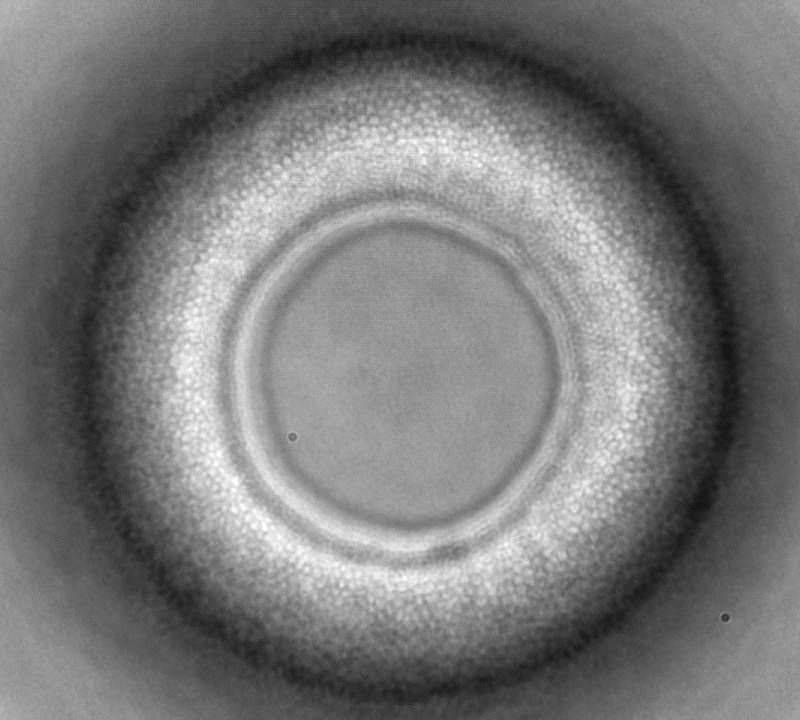

sideview valve:

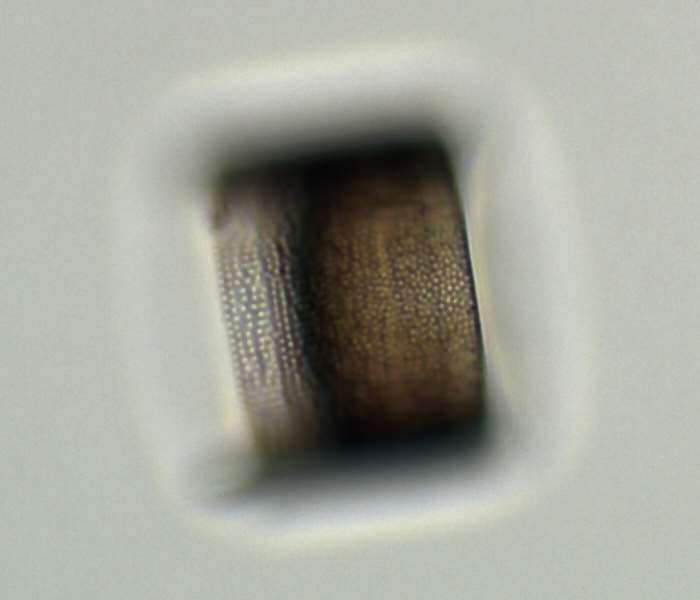

girdle:


With the Polyvar I can get a bit better with the 40x/1.00 planapo

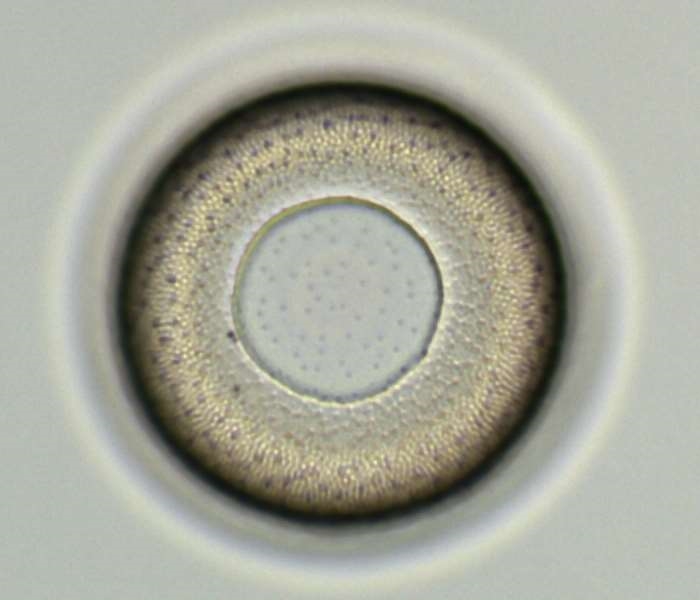

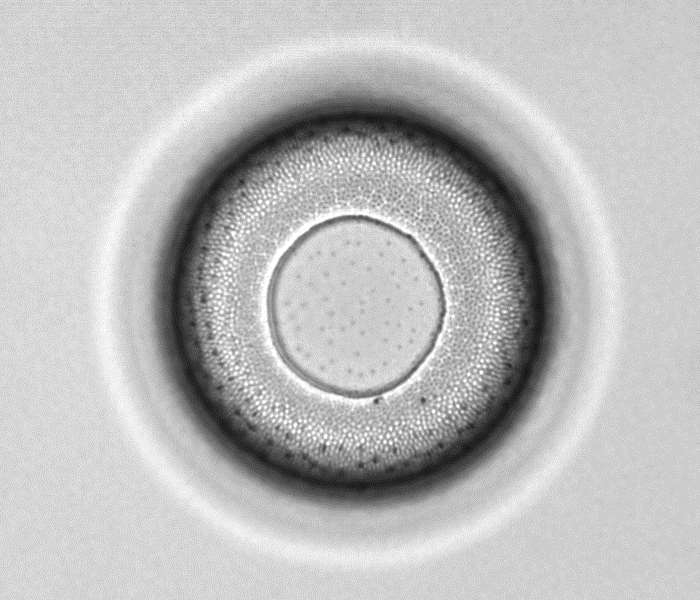

brightfield:

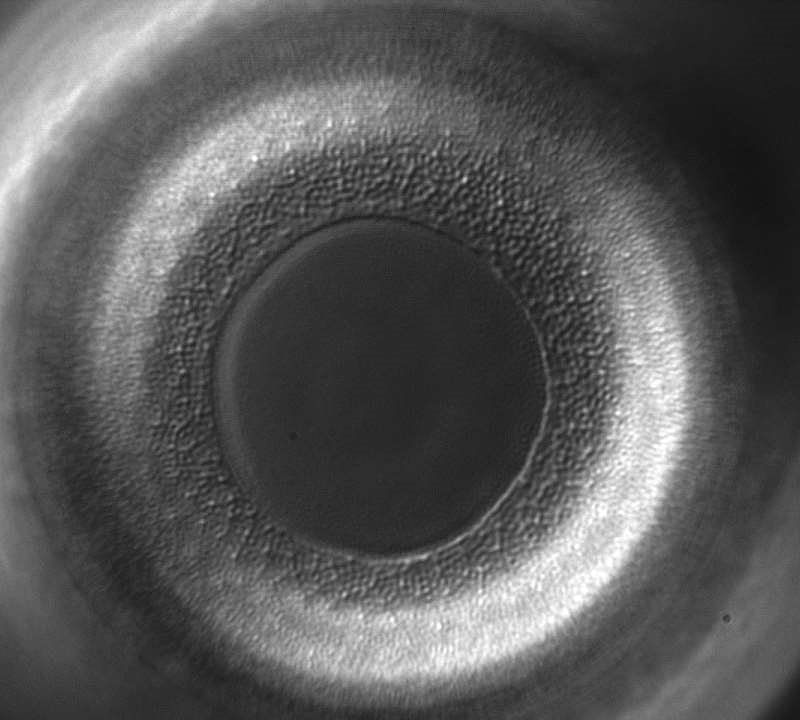

DIC



The DIC gives a muddy result, compared to the brightfield images. Also at maximum resolution it gives the same result with the 100x 1.32 planapo and waterimmersed condenser (NA1.3)

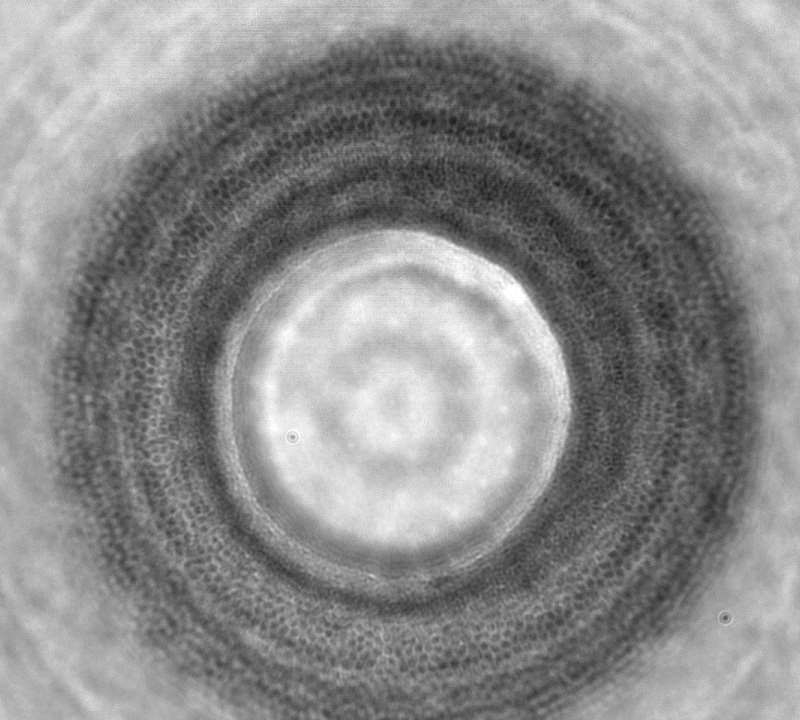

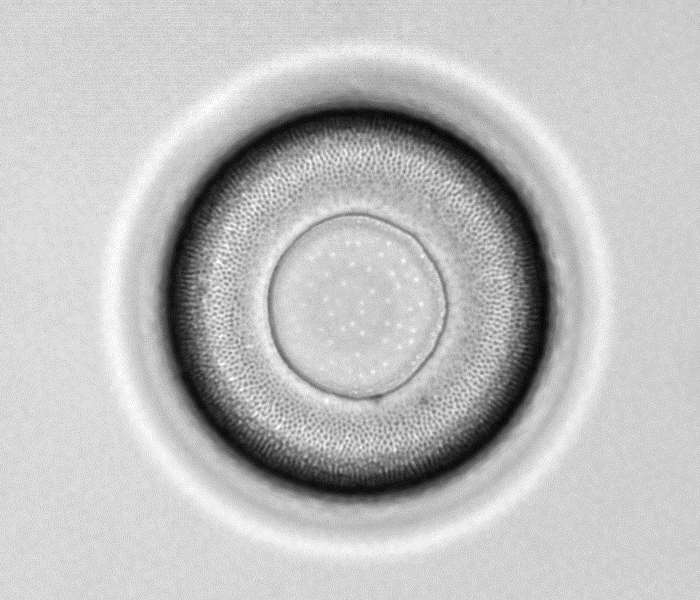

brightfield:

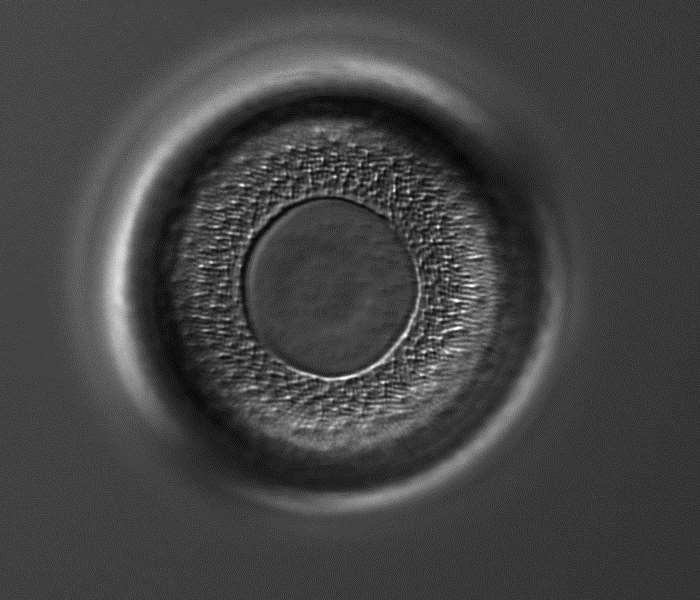

Circular oblique with the DF condenser (NA around 1.25):

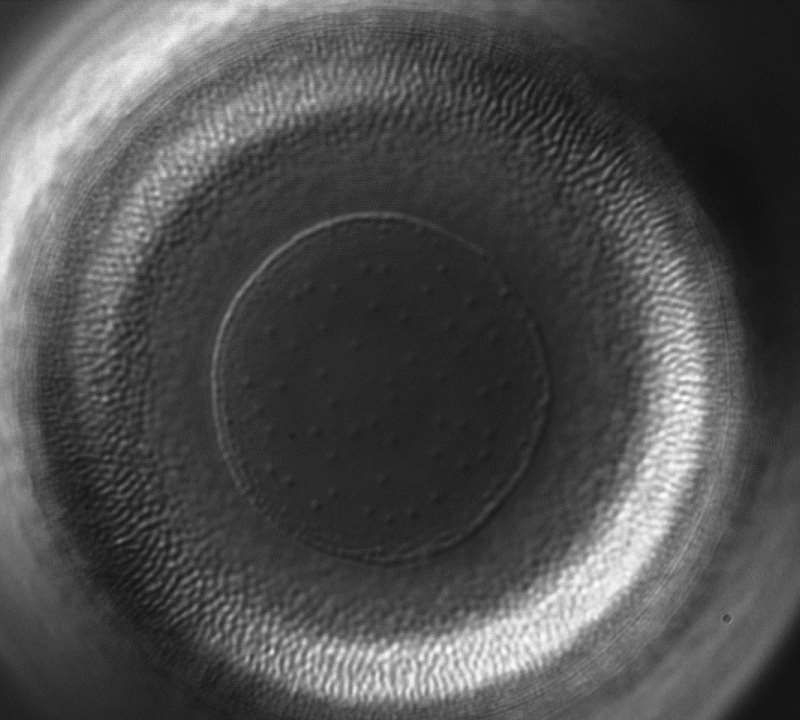

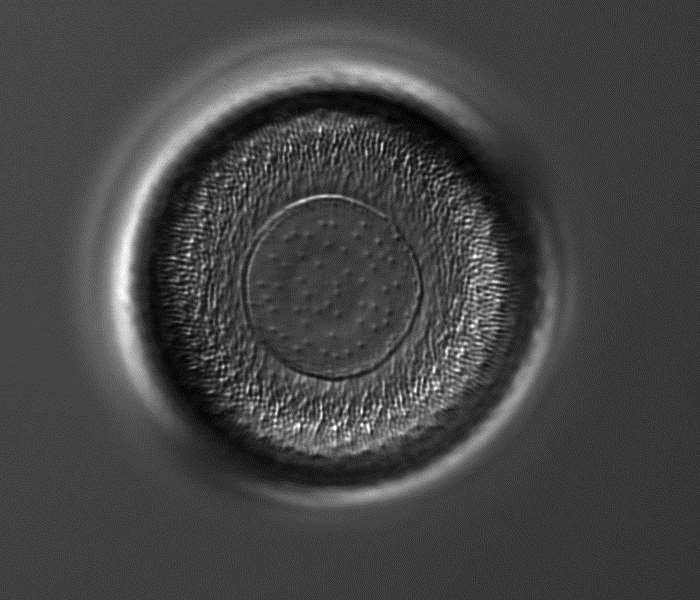

DIC:



Again, a muddy result of the innerds of the valve, the network structure is well visible in brightfield, also with circular oblique (semi-darkfield). But in DIC it is hard to make sense of it.

Ergo, DIC is not the holy grail, and brightfield is not bad at all ;-)

Best wishes,

René

[anne]

Dear Rene,

thanks for this comparison!

lg
anne

[JB]

The DIC gives a muddy result, compared to the brightfield images. Also at maximum resolution it gives the same result with the 100x 1.32 planapo and waterimmersed condenser (NA1.3)

Hi René,

Which Planapo did you use? The Zeiss and Leitz Planapos are the only ones I know with 100/1.32 but they are not intended for DIC (except maybe the Leitz *160 version). Was it a Reichert?

Best wishes,

Jon

[Rene]

Hi Jon, yep they are Reichert infinity objectives on a Polyvar.
Thanks, René

[A. Büschlen]

Hallo Jon,

zu deiner Frage:

The Zeiss and Leitz Planapos are the only ones I know with 100/1.32 but they are not intended for DIC (except maybe the Leitz *160 version).

möchte ich als Ergänzung auf den CF Nikon Plan Apo  100/1,40 Oil DIC  hinweisen.

Gruss Arnold

[JB]

möchte ich als Ergänzung auf den CF Nikon Plan Apo  100/1,40 Oil DIC  hinweisen.

Hallo Arnold,

Vielen Dank!    Das Nikon 100/1.40 DIC kenne ich noch nicht, aber das 60/1.40  DIC  funktioniert super!

Bei meiner Frage wollte ich nur herausfinden, welches 100/1.32 gemeint war (danke fuer die Info, Rene!), denn diese waren mir nur den Zeiss und Leitz bekannt. Insbesondere das Leitz 170 mm Pl Apo 100/1.32 hat sich in meinen Tests nicht fuer DIC geeignet (zu viel Spannung in den Linsen); das haette ein Grund fuer Renes Problem sein koennen.

Wobei die DIC-Aufnahmen eigentlich recht gut sind; das Problem koennte auch zu grosse Schichtdicke sein.

Beste Gruesse,

Jon
